Plants growing inside a Saveer plant growth chamber

The reach-in chamber
where FGR-2000
plants thrive.

Engineer

Structures, glazing, and climate systems engineered and built under one roof — designed to spec before anything is fabricated.

Explore engineering →

Certify

ISO 9001, 14001, and 45001 processes with a full commissioning checklist. Nothing is handed over until it is tested to standard.

Explore QA →

Control

Automated temperature, humidity, light, and irrigation, with live dashboards and alerts the moment a parameter drifts.

Explore control →

Support

Maintenance, agronomy, and upgrades for the entire life of the facility — a long-term partner, not a one-time vendor.

Explore support →
The Journey

Four steps, inside the FrankaGrow.

Meet the FrankaGrow canopy.

A sealed, mobile reach-in chamber engineered for plant research. Twin insulated doors, integrated 4-inch HMI, heavy-duty casters underneath — a footprint built to move where the science needs it, when it needs it.

Open the gates of the growing world.

Three tiers of adjustable shelving. Full-spectrum LED canopies above. A 2300-litre interior, ready to host hundreds of specimens under perfectly tuned conditions — light, temperature, humidity, all in concert.

A walk-in moment, every research session.

Real Saveer chambers, running today in genetics labs, breeding programs, and crop-science institutes. This is what your team will see when the doors swing wide — controlled environment, ready for the day's protocol.

Plants, light, air — in precise balance.

Multi-band LED canopies overhead. Multi-directional airflow keeping the canopy undisturbed. Sensors logging every parameter, continuously. The environment isn't merely controlled — it's choreographed.

— The full anatomy

One cabinet.
Every system, mapped.

A technical diagram of the FGR-2000 with every callout corresponding to a component you can specify, configure or upgrade.

1

4″ HMI Touch

Microcontroller-driven touchscreen. Schedule up to 15 real-time programs from one panel.

2

LED Canopy

Multicolor white / red / blue / far-red. PAR-optimized, up to 1000 μmol/m²/s, optional dimming.

3

Reach-In Doors

Twin sealed doors with observation windows, locking handles, and heavy-duty hinges.

4

Adjustable Racks

Reconfigurable rack heights for varied protocols — from seedlings to 1600 mm specimens.

1 2 3 4 5 6 7 8
Dimensions & Capacity
External dimensions3075 × 995 × 2500mm
Internal capacity2300litres
Growth height1600mm
Environment
Temperature range10 – 45°C light off
Temperature precision±0.5°C
RH% range (light on)50 – 90%
Lighting
SpectrumWhite · Red · Blue · Far-Red
Light intensity0 – 1000μmol/m²/s
Electrical
Power supply220 V AC · single-phase
Optional Add-ons
  • Customized temperature range
  • Application-specific light bands
  • Special high-intensity lighting
  • Gas control: CO₂ / O₂ / custom
  • Any further feature on request
Light intensity measured 15 cm from the source · Customizations available on request
5

Vent Grid

CFC-free condensing with hot-air by-pass and air & temperature sealing control.

6

Heavy-duty Casters

Four caster wheels make the FGR-2000 lab-mobile, with locks for stable operation.

7

Locking Handle

Ergonomic full-length door handle with green status indicator.

8

Insulated Cabinet

Sealed 2300-litre envelope — keeps ±0.5°C across the entire experiment run.

— Capabilities

Tailor-made turnkey systems, engineered end to end.

Every FGR chamber is assembled from a suite of precision subsystems — each one specified, built, and tuned to the protocol it will run.

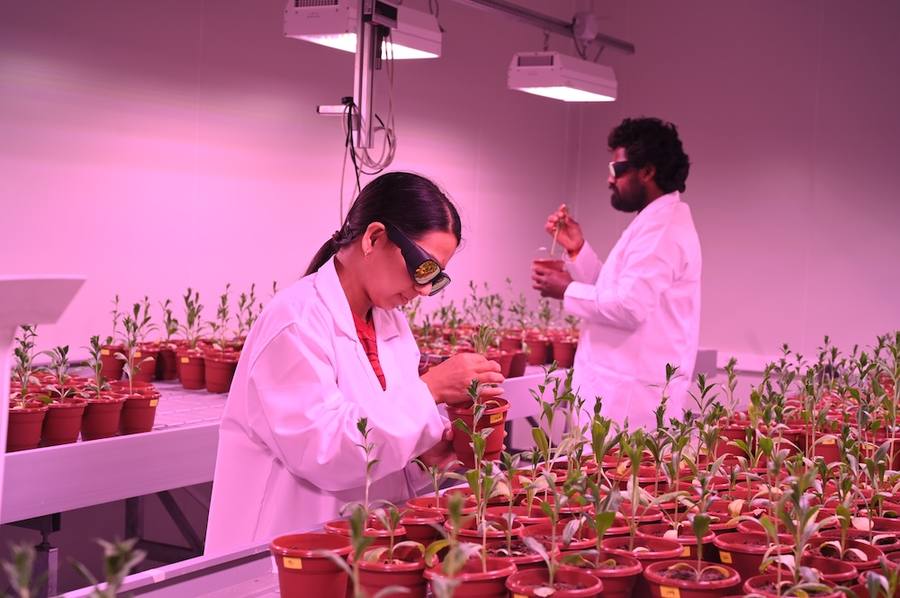

Controlled growth environment with climate-managed lighting

Advance Growth Environment Optimization

  • Air-conditioned temperature control
  • Humidification with ultrafine fogging
  • Monitoring & diffused injection of CO₂

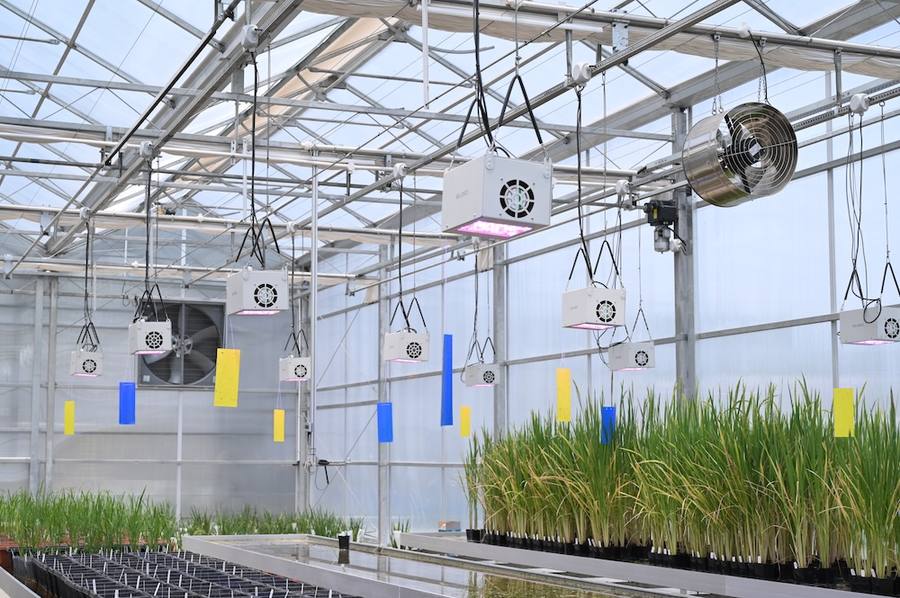

Adjustable spectrum LED canopy grid over rice research crop

Adjustable Spectrum Plant Canopy System

  • Grid system fixed with lights
  • Motorised vertical movement for height adjustment
  • Automatic & manual mode of operation

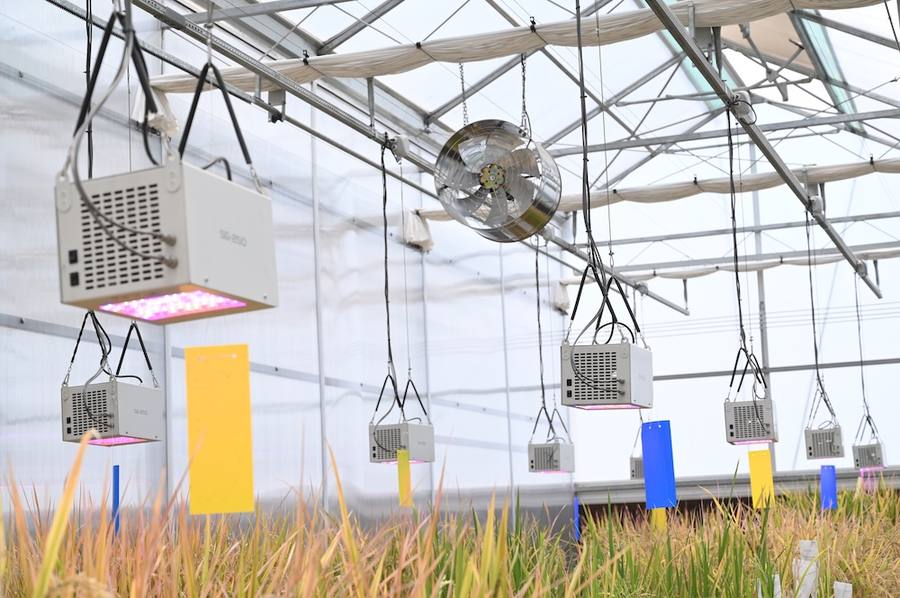

Greenhouse with ultrafine mist humidification and airflow

High Pressure Ultrafine Mist Humidification

  • High-pressure fine water droplets for rapid evaporation
  • Moisture-free ambience to prevent fungus & algae
  • Uniform humidification inside greenhouse

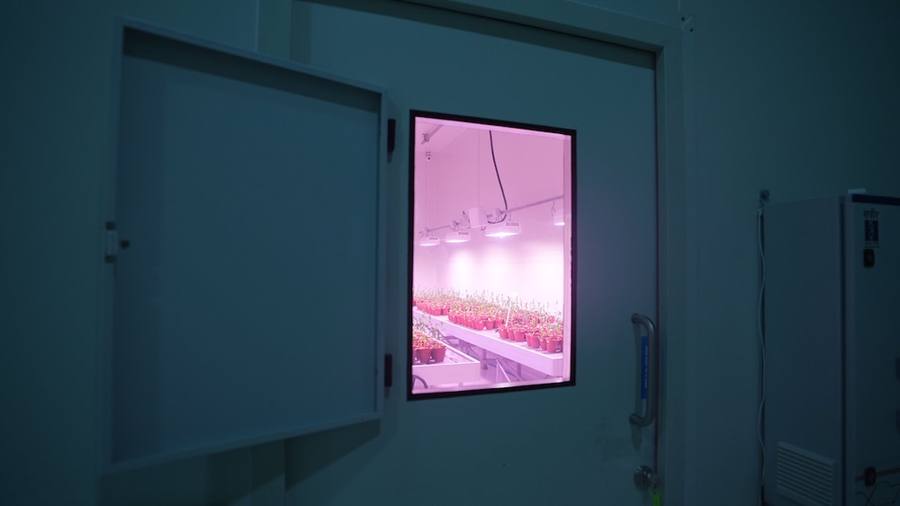

Facility corridor with integrated air-tight doors

Integrated Air Tight Doors

  • Heavy-duty reinforcement
  • Complete hermetic seal with bottom gasket
  • Magnetic lock
— Four systems, one environment

Every variable.
Under your control.

System 01 · Cooling

Cooling that thinks in seconds.

  • CFC-free system with smooth air circulation
  • Hot air by-pass paired with condensing unit
  • Integrated air & temperature control
More details
01 Cooling
System 02 · Airflow

Air streams where needed.

  • Top-most parallel air distribution
  • Controllable fresh air from HMI
  • Stream direction configured easily
More details
02 Airflow
System 03 · Illumination

A four-band spectrum.

  • Multicolor PAR-optimized LED grid
  • Flexible canopy with smooth dimming
  • Adjustable heights & grids
More details
03 Illumination
System 04 · Control
Chamber · 01 Live
Temp
19.8°
RH
63%

Control. Logged. Remote.

  • 4″ Touch HMI + real-time programs
  • Excel data logging & USB export
  • Remote cloud ecosystem access
More details
04 Control
— Let’s build something together

Tell us about your project. We’ll take it from there.

Whether you’re a research institution, enterprise, government body, or commercial grower — share a few details and our team will reach out to start the conversation.

01

Share your requirements

Tell us your goals, scale, and constraints.

02

Free consultation

Talk it through with our engineers.

03

Concept & timeline

Receive a tailored proposal and plan.

04

We build, you grow

A long-term partner, well past delivery.

Start a conversation

Fields marked * are required.

— Product Summary

The FrankaGrow FGR-2000: a reach-in plant growth chamber built for real research.

The FrankaGrow FGR-2000 is a precision reach-in plant growth chamber engineered by Saveer Biotech for laboratories, universities, seed companies, and commercial growers who need repeatable, controlled-environment results. Purpose-built for plant research, breeding programmes, tissue culture, and genetic studies, it delivers a stable micro-climate where every variable — temperature, humidity, light, and airflow — stays exactly where your protocol demands. At its core, it pairs ±0.5°C temperature accuracy with multi-directional, uniform air circulation, so plants at every shelf height experience the same conditions.

A tunable, four-band PAR-optimised LED spectrum lets researchers dial in photosynthetically active radiation for germination, vegetative growth, or flowering, while programmable photoperiods and day-night ramping reproduce natural cycles with lab-grade consistency. As a turnkey controlled-environment solution, the FGR-2000 removes the guesswork from indoor cultivation and plant science — providing the accuracy, reliability, and repeatability that serious growing depends on. From a single reach-in unit to a fully integrated facility, Saveer Biotech helps you build the growing environment your work deserves, and stands with you as a long-term partner well beyond installation.
